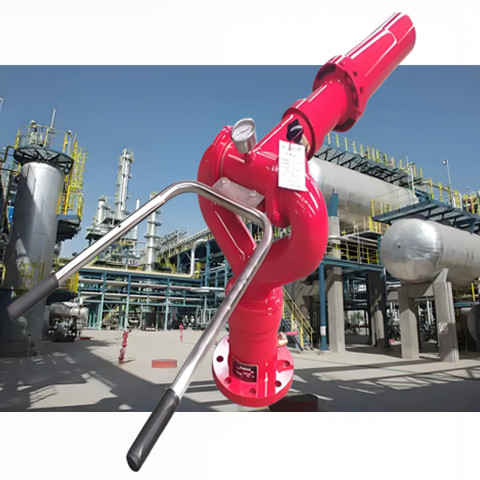

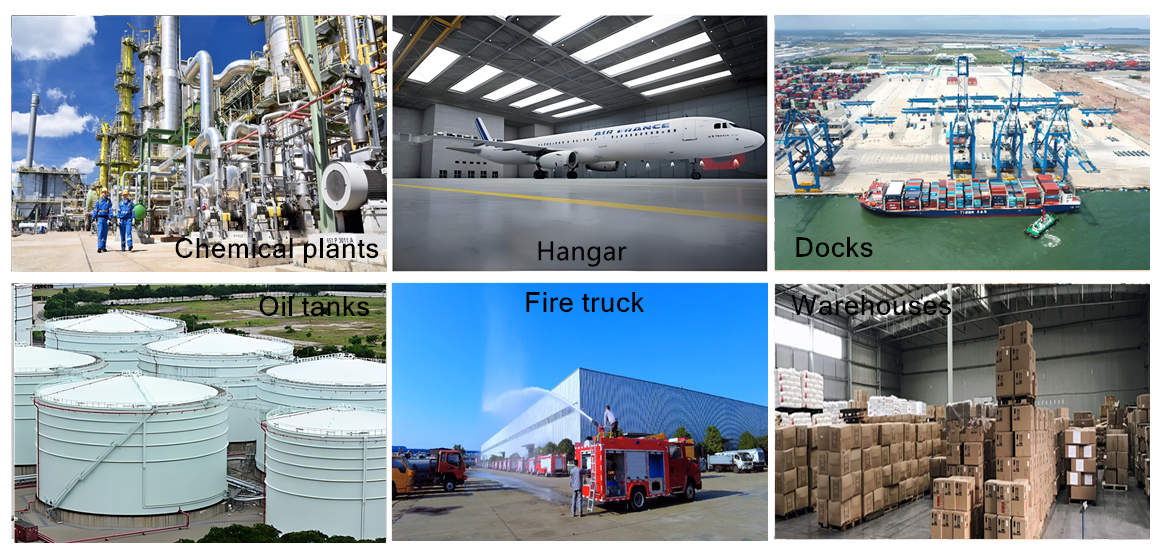

Liangda Space produces PL series foam fire monitors. The fire monitor has a simple structure, stable and reliable performance, flexible operation, easy maintenance, and a long range of concentrated water jet. It can be used for cooling and extinguishing storage tanks in oil storage tank areas, benzene tank areas, methanol tank areas, etc. It can also be used for cooling and cooling in fire scenes. It can effectively absorb heat from the air at the fire scene, adsorb smoke and dust, dilute toxic and harmful gases such as hydrogen in the air, and improve the safety factor of firefighters.This product is widely used in oil tank areas, liquefied hydrogen areas, chemical enterprises, warehouses, oil fields, oil drilling platforms, docks, fire turrets and other places.
▶Liangda Space can customize products according to the needs of different regions and protect the business and technical secrets of partners.
▶ Liangda Space has passed ISO9001 quality system certification and its product quality is reliable..
▶Once the order is confirmed, Liangda Space will bear the subsequent design costs, temperature and humidity, vibration, durability and other testing costs, and bear the risk of raw material price changes.
▶The range can reach more than 48-65 meters, solving the problem that people cannot approach in large-scale fire or dangerous scenarios.
▶ The range can reach more than 48-65 meters, solving the problem that people cannot approach in large-scale fire or dangerous scenarios。.
▶ Foam fire cannons quickly cover the combustion surface by spraying foam mixtures, isolating oxygen and inhibiting reignition, especially suitable for Class A, B, and C liquid fires.
| Model | Working pressure | ||
| PL10/24 | PL10/32 | PL10/48 | 1.0-1.2MPa |
Flow rate (L/S) | Working Voltage | ||
| 24 | 32 | 48 | 85-250VAC |
Water spray range (m) | Connection flange size | ||
| 55m | 60m | 70m | DN100 |
Foam spray range (m) | Horizontal rotation angle | ||
| 42 | 48 | 60 | 360° |
| Weight (KG) | Vertical Rotation Angle | Overall Dimension Wx L x H | |
| 13 | ﹣30°~75° | 1020mm×360mm×400mm | |
